    P10 Led Display Board Frame Weld Free Tenon Mortise Steel Structure

    1. Overview

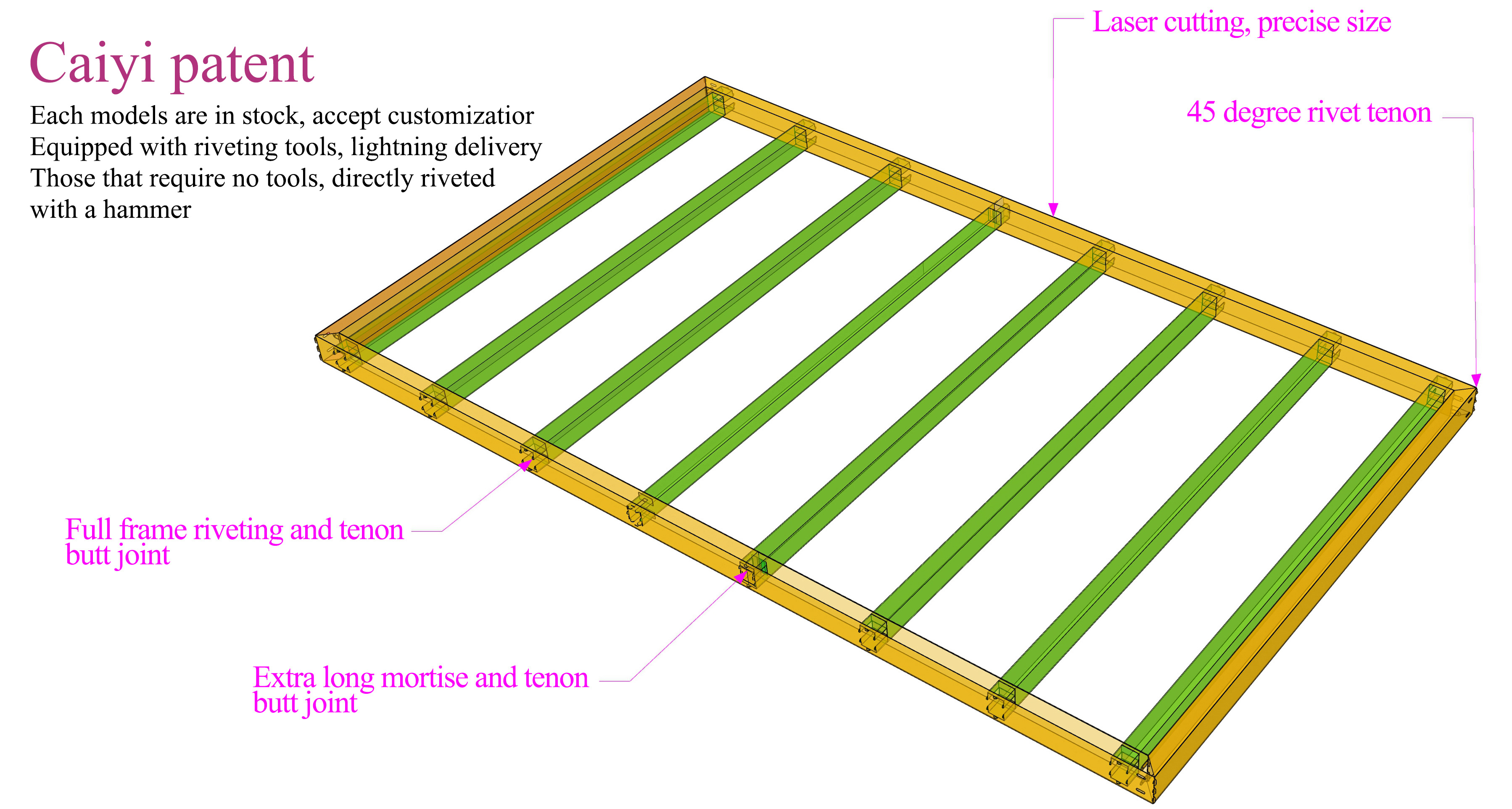

    Mortise and tenon steel structure divided into full mortise and tenon steel structure and corner with half mortise and tenon steel structure
    Mortise and tenon steel structure to reduce high energy consumption, high environmental pollution, free from the constraints of welding, opening and drilling, not affected by the construction personnel's connection technology level and construction site environment, size matching, Mortise and tenon steel structure is more safe and reliable and suitable for the future industrial development of steel member connector especially suitable for cold installation environment, in line with the national advocate of safe assembly operation mode.

    2. product characteristics

    Laser cutting, accurate size, no dislocation, save time, labour and money,

    No need to weld, a hammer and a screwdriver! There is no need to hire another edge packer!

    Corner add half mortise and tenon steel structure, this structure is the upgrade version of mortise and tenon structure!

    3.technical characteristics

    All tenon and tenon steel construction:
    First, insert the four sides and the middle column structure into the corresponding holes, hammer the mortise and tenon joints flat, insert a screwdriver into the round holes, hold the mortise and tenon joints, knock the screwdriver with the hammer, hammer the joints flat, form a main frame, fixed on the wall with corner code, and then insert 4020 square tube from the top down, the screen body is too high, can be installed with a horizontal bar, a screen structure is completed. Then put the stainless-steel card or aluminium card to the four sides, the whole screen body steel structure is completed!

    Corner with half mortise and tenon structure:
    First, insert the square pipe around the corner, hammer the mortise and tenon joint flat, insert a screwdriver into the round
    hole, hold the mortise and tenon joint, knock the screwdriver with the hammer, hammer the joint flat, form a main frame, fixed on the wall with corner code, and then insert 4020 square pipe from the top down, the screen body is too high, can be installed with a horizontal bar, a screen body structure is completed. Then put the stainless-steel card or aluminium card to the four sides, the whole screen body steel structure is completed! The structure can also be used for magnetic edge profile, can also be used for embedded display!

    All kinds of steel structures produced by the company are more safe and reliable and suitable for the future industrial
    development of steel components connector, especially suitable for cold installation environment, in line with the national
    advocate of safe assembly operation mode, reduce high energy consumption, high environmental pollution, free from the bondage of welding, opening and drilling, not affected by the construction personnel connection technology level and construction site environment, The size matches and the connection is perfect!
